Description
A hydroponics grow tower system is a self-contained hydroponic system that can be used to grow vegetables, herbs and other plants. The system consists of a tall tower with a bottom reservoir filled with a nutrient-rich solution. The tower holds netpots with a growing medium, such as cocodisc, grow cubes, clayballs or rockwool, and the plants are inserted into the medium. The nutrient solution is then pumped up to the top of the tower and allowed to drip down over the plants. The system is designed to be highly efficient, using minimal water and nutrient resources.

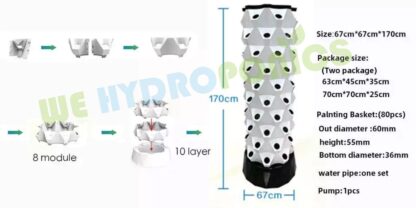

Watika Tower Parameters:
The Watika has 3 types:
- Watika80 – 10 layers,8 holes per layer,Totally 80 planting. Width: 670mm,Height:1700mm
- Watika64 – 8 layers,8 holes per layer,Totally 64 planting. Width: 670mm,Height:1400mm
- Watika48 – 6 layers,8 holes per layer,Totally 48 planting. Width: 670mm,Height:1100mm
|
Name
|
Watika 48/64/80 planter |
|
Mode No
|
Hydroponics Vegetable Growing Tower |
|
Structure
|
Knock-down structure grow tower
|
|
Usage
|
Hydroponic planting vegetables or garden use grow tower,Greenhouse, farming, gardening, home
|
|
Volume
|
0.45 cbm /unit grow tower
|
|
Height
|
1100MM/1400MM/1700MM grow tower
|
|
Level
|
6/8/10 level grow tower
|
|
Accessories
|
Planting bracket, AC power Pump, Water tank, Water pipes, Nutrients, Germination media, pH meter, EC meter, Automation Timer
|
|
Application
|
Family use, farm or garden use, Commercial use grow tower
|
| Assembly | Knock-down structure, fun to assemble |
Features:
1. Indoor vertical farm hydroponic system.
2. The Height can be 6 level ,8 level, 10 level , each level will have 8 plants .(leaf vegetables, berries, herbs, etc.)
3. Build your own urban farm at home and save space.
4. Timers design for scientific irrigating and plants lighting.
5. Inside with water tank , keep it beauty.
6. Easy to install and transport.
Installation of Hydroponics vertical tower
- Start by assembling the vertical tower according to the instructions provided by the manufacturer. Make sure to attach all the pieces securely, as any loose parts may cause the tower to become unstable.
- Once the tower is assembled, place it in the desired location(indirect sunlight preferred). Make sure the tower is level and stable before proceeding.
- Place the nutrient solution in the reservoir and then connect it to the vertical tower. Make sure all the connections are tight and secure.
- Install the water pump. Connect the pump to the power source and turn it on.
- Set the timer as per required cycle.

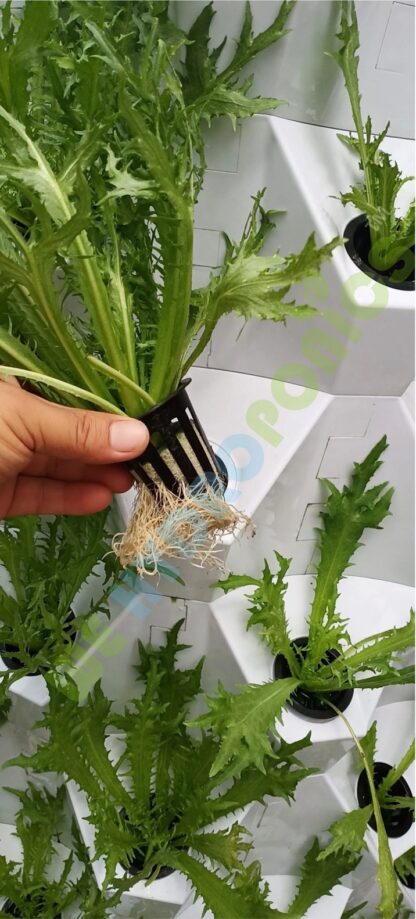

- Place the plants in the vertical tower’s growing chambers. Tower can be used to germinate plants. Use grow cubes and clayballs as per seed requirement.
- Monitor the system and make adjustments as needed to ensure the plants are receiving the correct amount of nutrients, water and indirect sunlight.
- Enjoy your vertical hydroponic tower and the bountiful harvest it will provide!
